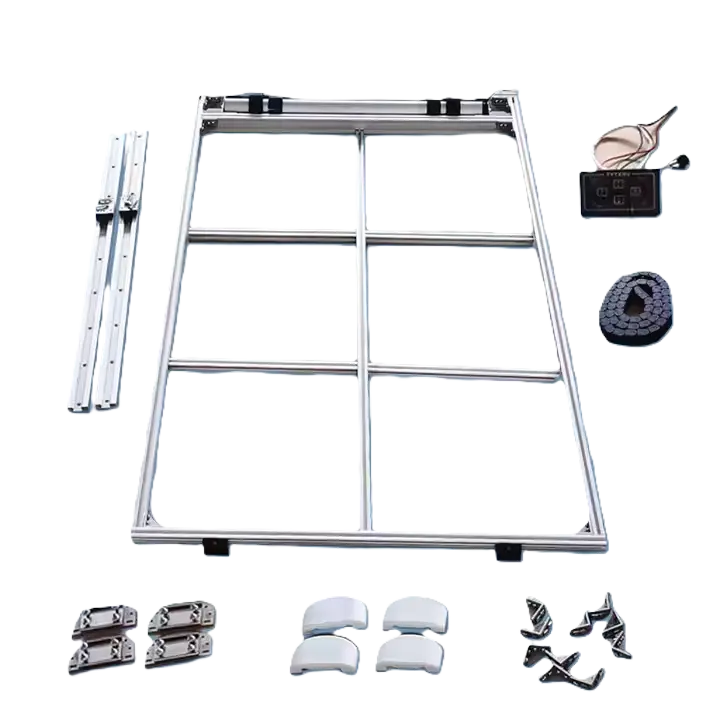

Custom RV Bed Lift System
Lift Bed - Aluminum Profile
ETA 6-8 weeks

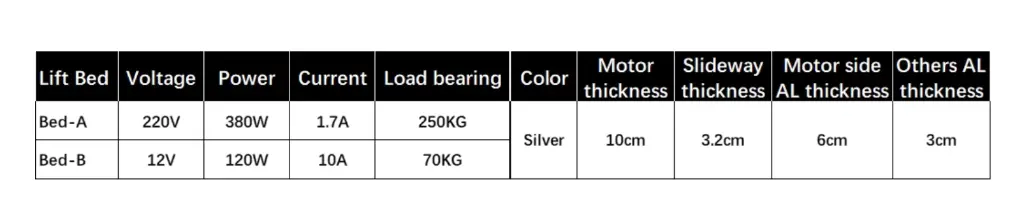

| Brand: BlackM⬤A™ |
| Material: Aluminium |
| Color: Custom |
| Power: 12V/ 220V/ 24V/ Custom |
| Control: Mechanical/ Touch/ Custom |
| Weight Limit: 70kg/ 250kg |
| Weight: 40 kg |
| Size: 250 x 40 x 25 cm |
Lifting Tips:
Step 1: Please visually and ensure that there is no one and nothing on the bed
Step 2: press the up button of the switch to move the electric lifting bed to the preset support position of the whole bed
Step 3: confirm that the electric bed has risen to the preset position
Step 4: please connect the double safety buckle of the lift bed
Operational Flow:
1. Press and hold the "main switch" for 2 seconds starts
2. Short press "L", the lifting bed will rise. When it rises to the limit switch, the lifting bed will stop. At this time, short press "stop"
3. Short press "down" to lower the lifting bed. When it reaches the limit switch, the lifting bed will stop. At this time, short press "stop" or delay 2 minutes to close automatically
4. After 2.5 minutes of standby on the touch panel, the main switch will be turned off automatically
Instructions:
- The electric lift bed mechanism is engineered exclusively for operation within the confines of the Car/Motorhome/Camper.
- It is designed to support a maximum weight of 60-70kg.
- To ensure the integrity of the electric lift bed, it is imperative to utilize four brackets during the lowering process.
- Prior to elevating the bed, it is essential to clear the surface of any foreign objects. Additionally, during the descent, please verify that the area beneath the bed is free from any obstructions.
- The calibration of the upper and lower limits of the electric lift bed should be performed solely by certified technicians.
- Furthermore, the installation of the slide rail for the electric lift must occur in a specified location to ensure optimal functionality.
