Slider Rails - Heavy Duty

https://www.mystenterprise.com/web/image/product.template/363/image_1920?unique=f027206
(1 review)

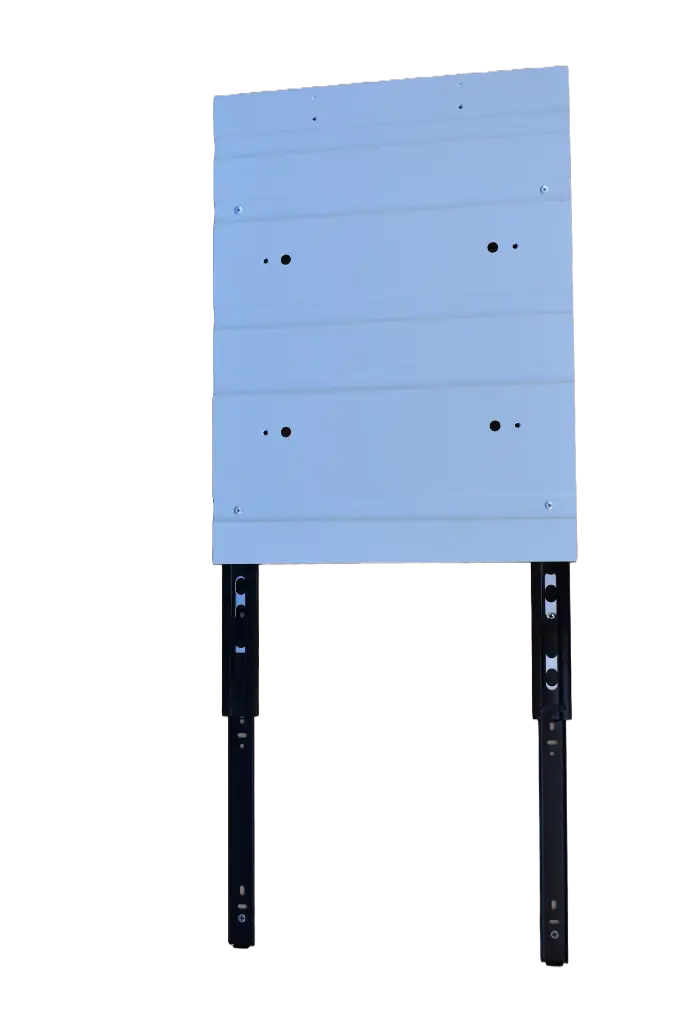

Introducing the BlackMOA™ Multipurpose Slider Rails, designed for convenience and durability in various applications, from campervan installations to home storage solutions.
Made from high-quality aluminum, these slider rails offer a robust and lightweight solution for attaching beneath fixed toilets, fridges, and more, ensuring smooth operation and secure placement.
A compact yet sturdy Rails, with integrated slide-in lock that ensures stable positioning, providing added peace of mind during travel or everyday use.
Ideal for customizing your setup with ease and flexibility.

Limited Time 28% Discount.

$NZ 128.75 128.75 NZD $NZ 178.83 Tax Included

$NZ 155.50 Tax Included

Not Available For Sale

  • Brand
  • Size
  • Material
  • Extra Feature
  • Weight Limit

This combination does not exist.

Contact Us
Brand: BlackM⬤A™
Material: Aluminium
Extra Feature: Slide-in Lock: Yes
Weight Limit: ~ 150kg

Privacy and Ts&Cs

Share

"How to" Video on Heavy Duty Rail for BlackMOA™ - Fixed Toilet


Tools Required:

  • 5mm Screws (provided with the kit)
  • Screwdriver

Components:

  • BlackMOA™ Fixed Cassette Toilet
  • Sliding Plate with Rails
  • Small Screws for securing

Step 1: Prepare the Setup

  • Ensure all parts are present: BlackMOA™ Cassette Toilet, Sliding Plate with pre-attached Rails, and Screws.

Step 2: Position the Toilet

  • Carefully turn the BlackMOA™ Cassette Toilet upside down on a smooth surface to expose the bottom plate.

Step 3: Align the Sliding Plate

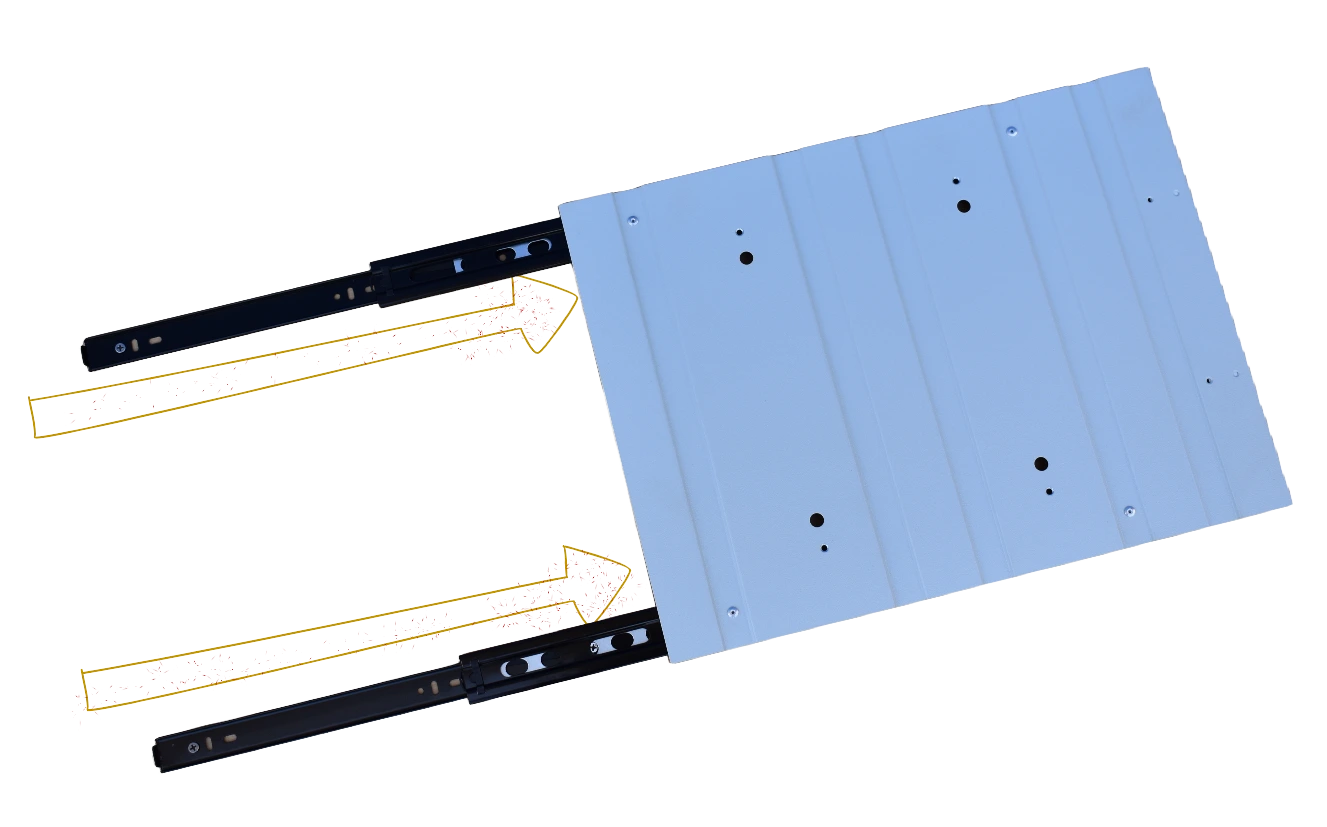

  • Take the Sliding Plate, ensuring the side with the wheels is facing towards where the Cassette door will be when the toilet is upright (Front Facing Sliders ⇅).
  • Position the Sliding Rail Plate under the toilet such that the holes on the plate align with those on the bottom of the toilet.

Step 4: Secure the Plate

  • Insert the 5mm screws into the aligned holes.
  • Use a screwdriver to secure the screws tightly.
  • Ensure there are no loose parts and that the plate is sturdy. There should be four screws in total.

Step 5: Verify the Lock Mechanism

  • Confirm that the locking mechanism on the Sliding Plate is engaging properly. There should be locks located on the side and the back of the plate.

Step 6: Finalize Installation

  • Test the slide mechanism by gently pushing and pulling to ensure the toilet moves smoothly along the rails.
  • Confirm the toilet locks via built-in locking mechanisms.

Step 7: Completion

  • Double-check all connections and locking points to ensure everything is secure.
  • The toilet should now be securely mounted and ready for use.
Additional Tips:
  • Regularly check the screws and locks for any looseness.
  • Ensure that the slide mechanism remains clean and unobstructed for optimal performance.
  • Watch the demo video here.
